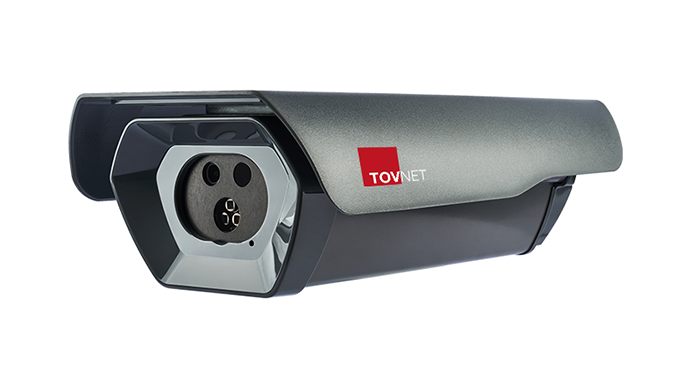

All-in-One Camera of Thermal Imaging + Actual Imaging + Flame Detection
Maximized Flame Detection Capability with Three IR Sensors
Protocol Support for Network Client Development
Thermal Imaging SDK, RTSP/Actual Imaging RTP, RTSP Support
Temperature Detection(Max, Min, Avg)
Alarm Activation Setting Function When Maximum Temperature is Detected
Three-phase Temperature Comparison Detection
Point, Line, Plane(Square, Polygon) ROI Support/Support for 21 ROI Regions
Low-light Specialized Image Sensor Built-in
Supports up to 8 Simultaneous Users
PoE Support
Ai 실영상 복합 열화상 카메라 실외 | ||
| Thermal Imaging | Type | Uncooled Type |
| Resolution | 256 X 192 | |
| NETD | < 50mk | |
| Wave Length Bandwidth | 8-14μm | |
| View Angle | 90.6°(H) X 65.4°(V) | |
| Accuracy | ±2°C | |
| Temperature Measuring Range | -20°C ~ 150°C / 20°C ~ 550°C | |
| Temperature Area Operating Method | Software Setting Hardware Setting *Camera temperature range settings are configurable, enabling operation without software | |
R.O.I (Temperature Measuring Space) | 29 ones (Point, Line, Square, Polygon) | |
| Events | ㅇ Smart Intelligent Alarm System Dedicated for Electric Vehicles - Smart Alarm Provision Based on Temperature Trend Analysis - 3-Stage Temperature Change Alarm ㅇ Alarm When Maximum Temperature is Detected ㅇ Automatic Seasonal Maximum Temperature Detection Setting | |
| Video | Image Sensor | 1/2.8inch Sony COMS |
| Resolution | 1920(H)*1080(V) | |
| Frame | 30fps | |
| View Angle | 101°(H) X 57°(V) | |
| Flame Detection | Sensor Type | ㅇFiltering process using a three wave length infrared sensor ㅇDetects only flame signals using three infrared ray(IR) sensors - IR1: A sensor within a specific wavelength range capable of detecting flames - IR2: A sensor within a specific wavelength range capable of responding to other faulty detecting factors (such as sunlight, halogen, heater, welding, etc.) than flames - IR3: A sensor within a specific wavelength range capable of responding to infrared ray emitted by humans ㅇ When the response to IR1 is large and the responses to IR2 and IR3 are relatively small, it is recognized as a flame. |
| Detecting Time | 1~7 sec | |
| Detecting Disrance | 60M | |
| View Angle | 90° | |
| Network | Video Compression Method | H.264, JPEG |
| Protocol | ONVIF, TCP/IP, RTSP | |
| Setting & Control | WeB Setting Support Planned (Coming Soon) | |
| General | Country of Origin (R&D/Manufacturing/Production) | Made in KOREA |
| S/W | Made in KOREA | |
| Maximum Simultaneous Accessors | 8 persons | |
| Rated Voltage | DC 12V / 3A, PoE | |
