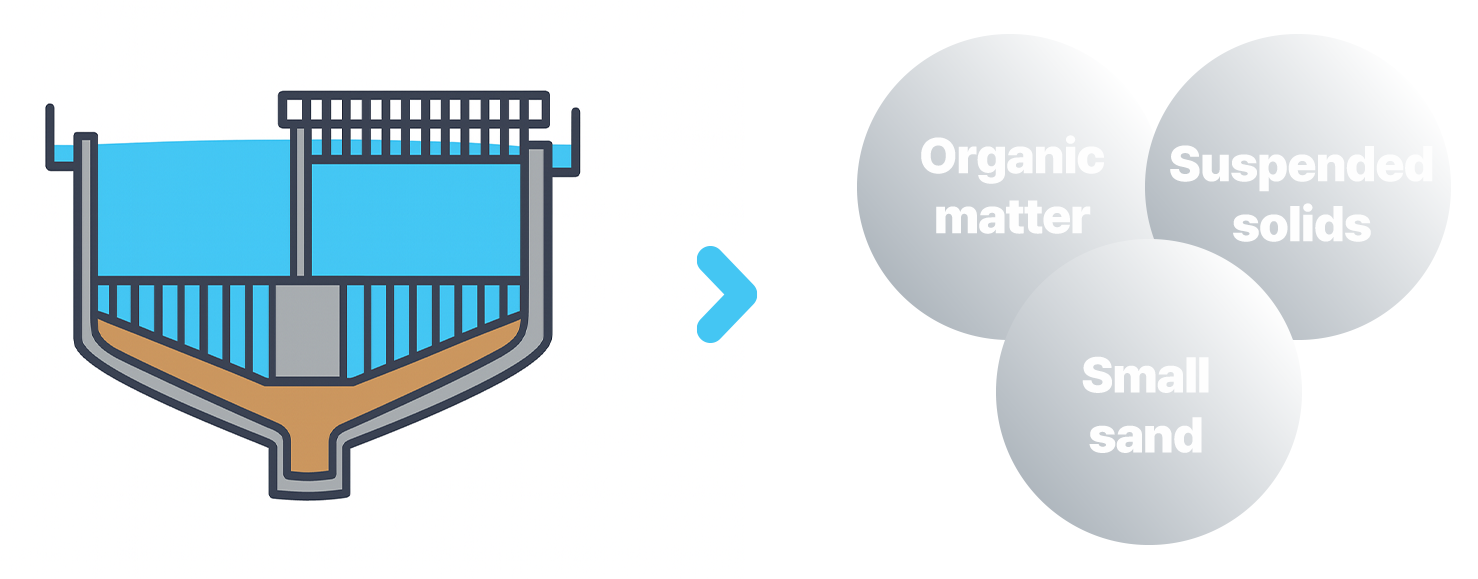

Organic matter, suspended solids, and sand in the water purification process cause algal blooms and promote microbial growth.
In particular, if sludge is not blocked in the final sedimentation tank, the bulking phenomenon causes excessive growth of bacteria or fungi, making sludge concentration difficult and reducing the efficiency of water purification treatment.
Prevent the bulking phenomenon through precise monitoring with TOVNET Water Purification Ai.

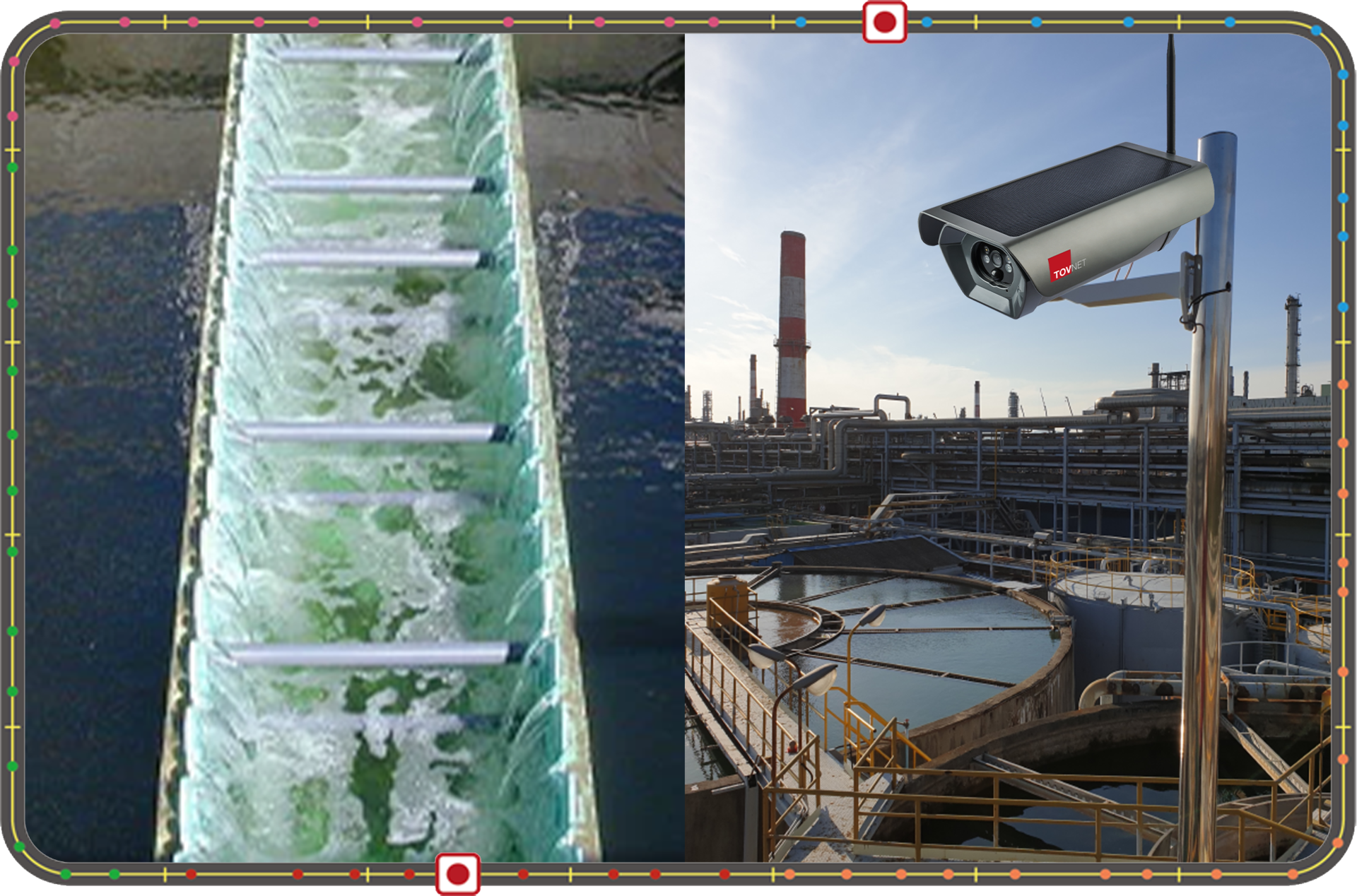

.Residue you could only see with your eyes—now check it precisely with SolarCam Multi-Spectrum.
Multi-Spectrum
· It detects chemical water quality, soil, gas, and volatile organic compound(VOC) contamination that cannot be identified through standard RGB CCTV footage.
Visible Water Quality
Contaminated Water in Black Detected by TOVNET Water Quality Control Ai
TOVNET Water Quality Control Ai automatically detects and alerts you to sludge overflow during the sedimentation process.
Sludge Generation Monitoring
Sludge Generation Monitoring

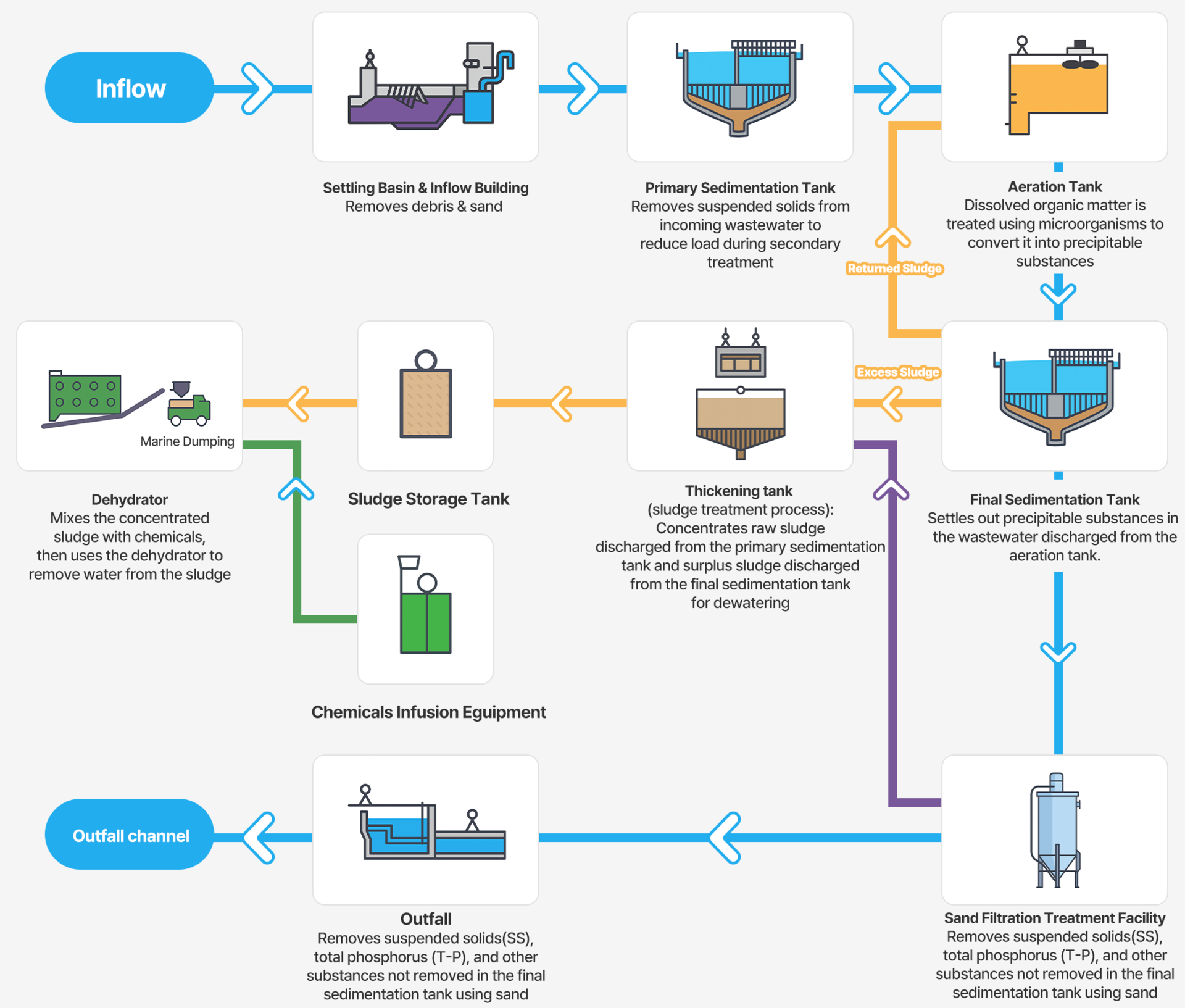

Inflow Pumping Station
1st Sedimentation Tank
Biological Reactor
2nd Sedimentation Tan
Filtering Installation
Digestion Tank
Centrifugal Dehydrator
Recycling

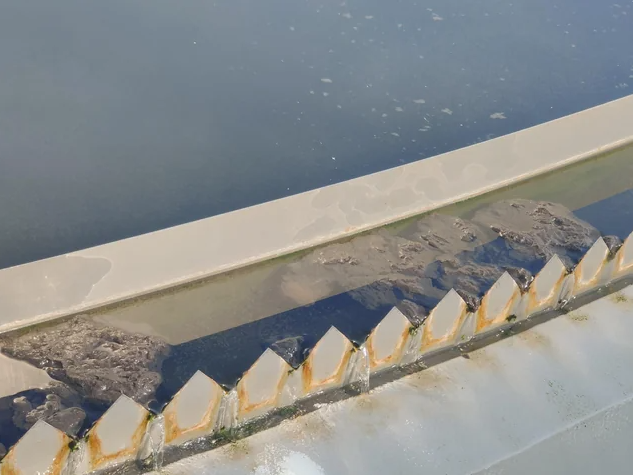

<Sludge Generation/Overflow Example>
TOVNET Water Quality Control Ai Monitoring System

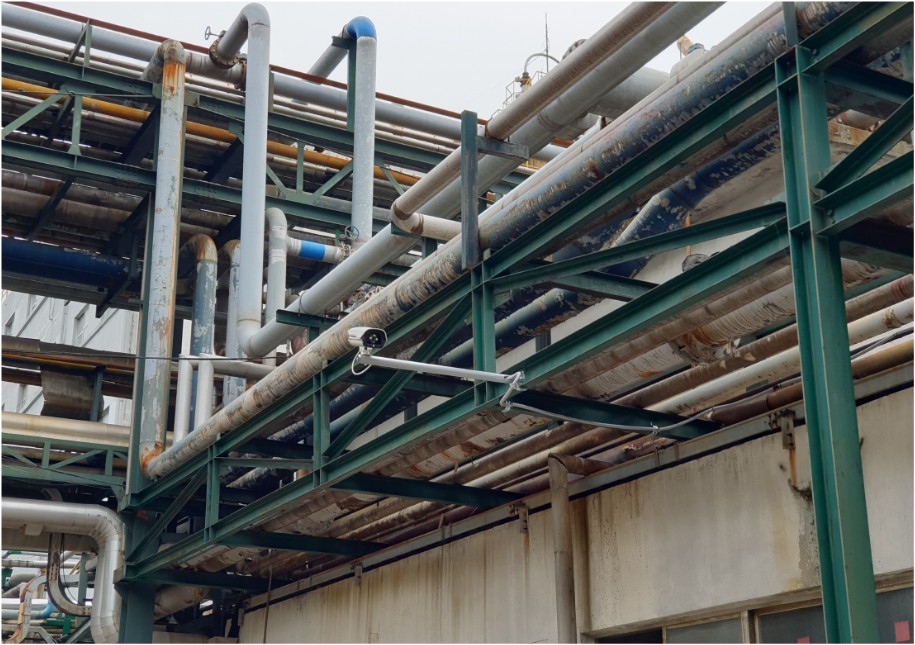

· Various sensors (including actual imaging cameras, thermal imaging cameras, and environmental sensors) installed along pre-designed & pre-installed rails according to the site conditions monitor the area around the sedimentation tank to detect sludge overflow and alert personnel to the situation.
TOVNET Water Quality Control Ai Data
Construction & Learning System
Normal
Initial Stage of Sludge Generation

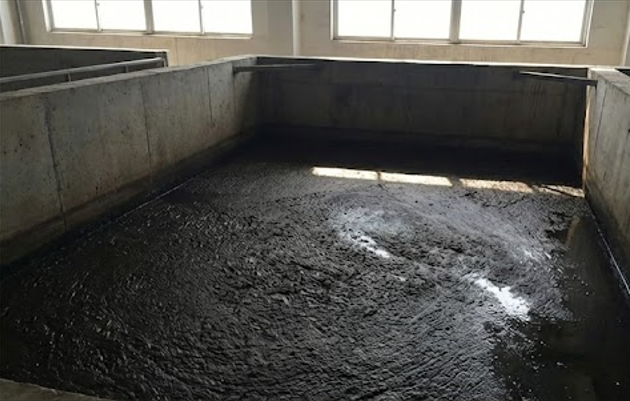

Sludge Overflow
Learning Data Construction Based On Water Tank Status
· It classifies water tank image data into three stages of normal, initial stage of sludge overflow, and sludge overflow. · It collects three-stage learning data and tags the sludge area to construct the learning dataset.
Sludge Detection Model Learning & System Construction
· Learning is being conducted using the Yolo V5 framework. · It applies logic to eliminate detection interference factors such as sunlight and shadows, etc. · Sludge overflow start point detected, triggering a warning message
TOVNET Water Quality Control Ai automatically detects and
alerts you to gas leaks during the digestion tank process.
Gas Leaks Monitoring
Inflow Pumping Station
1st Sedimentation Tank
Biological Reactor
2nd Sedimentation Tank
Filtering Installation
Digestion Tank
Centrifugal Dehydrator
Recycling
<Monitoring of Gas Leaks in Aging Pipelines.>
Gas leaks invisible to the naked eye—now detect them instantly
with the TOVNET SolarCam.
· Thermal Gas Imaging(TGI) Gas Pollution Detection and Ai Big Datafication · Visually Detect Gases Invisible to the Naked Eye
It provides integrated management through a remote monitoring system.
· Sludge generation & odor change analysis according to seasonal, monthly, and hourly water temperature variations · Enhancing public acceptance of clean water · Establishment of a long-term sewer management plan based on continuous and scientific data collection
